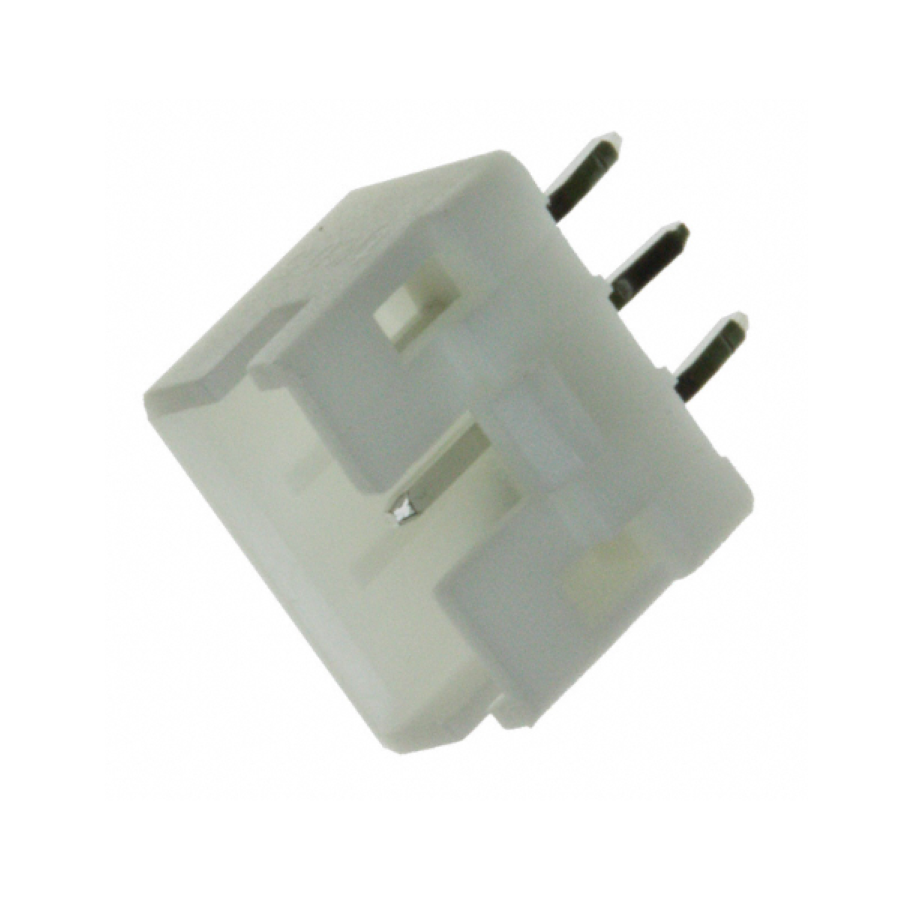

1735446-6
Manufacturer:
TE Connectivity
Mfr.Part #:
1735446-6
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:6 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 13.9954 mm |
| Width | 4.7 mm |
| Termination | Solder, Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 6.0706 mm |
| Packaging | Bulk |
| Voltage Rating | 100 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.4036 mm |
| Contact Material(Contact Finish) | Nickel, Tin |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 6 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Wire/Cable Gauge | 30 AWG |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Current Rating | 3 A |
| Housing Color | Natural |
| Plating | Tin |
| Contact Mating Length | 3.3528 mm |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.6 mm |
| Tail Length | 3.4 mm |
| Plating Thickness | 2.03 µm |
| Contact Gender | Male |
| Mating Post Length | 3.3274 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mating Retention | With |
| PCB Mount Retention | With |
| PCB Mount Alignment | Without |
Stock: 6003
Distributors
pcbx
pcbxUnit Price$0.16927
Ext.Price$0.16927
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16927 | $0.16927 |
| 10 | $0.14277 | $1.42770 |
| 50 | $0.13261 | $6.63050 |
| 100 | $0.12317 | $12.31700 |
| 500 | $0.11440 | $57.20000 |
| 1000 | $0.10626 | $106.26000 |
| 3000 | $0.09870 | $296.10000 |
| 5000 | $0.09167 | $458.35000 |
| 10000 | $0.08515 | $851.50000 |
